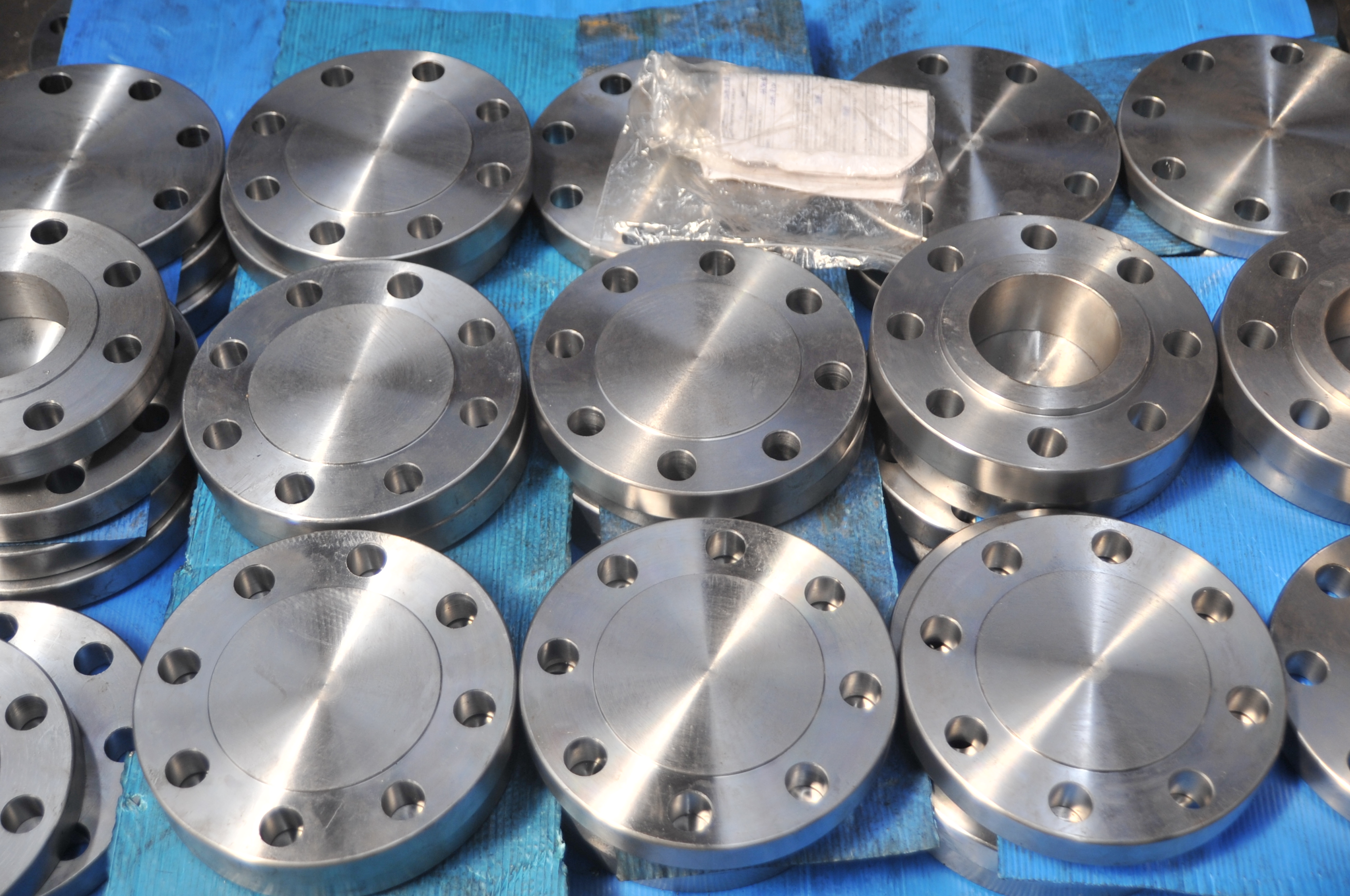

Blind Flange

Blind Flange

Blind Flange
This Flange is used to seal the end of pipes systems and prevent flow, marking it easy to conduct pressure tests. They are easy to work around as they allow convenient access to pipes.



Description of our products:

  • NPS: 1/2” to 60”
  • Pressure Rating: Class 150, Class 300, Class 600, Class 900, Class 1,500, Class 2,500
  • Connection Face: RF / RTJ
  • Material:
    • Carbon steel: ASMT A105/N, ASTM A350 LF2 CL1, ASTM A694 F52/F60/F65/F70
    • Stainless steel: ASTM A182 F304/F304L/F310/F316/F316L/F317/F321
    • Alloy steel: ASTM A182 F11/F12/F22
  • Packing: plywood case or plywood pallet
  • Coating: Oil, black paint, yellow paint, hot dip galvanized, electrolytic zinc and epoxy resin coatings



Standards, Dimensions & Weight:

ASME/ANSI B16.5 Class 150 Blind Flange RF

ASME/ANSI B16.5 Class 300 Blind Flange RF

“ASME/ANSI B16.5 Class 600 Blind Flange RF

ASME/ANSI B16.5 Class 900 Blind Flange RF

ASME/ANSI B16.5 Class 1500 Blind Flange RF

ASME/ANSI B16.5 Class 2500 Blind Flange RF

ASME/ANSI B16.5 Class 600 Blind Flange RTJ

ASME/ANSI B16.5 Class 900 Blind Flange RTJ

ASME/ANSI B16.5 Class 1500 Blind Flange RTJ

ASME/ANSI B16.5 Class 2500 Blind Flange RTJ

ASME B16.47 Series A/MSS SP-44 Class 150 Blind Flange RF

ASME B16.47 Series A/MSS SP-44 Class 300 Blind Flange RF

ASME B16.47 Series A/MSS SP-44 Class 600 Blind Flange RF

ASME B16.47 Series A/MSS SP-44 Class 900 Blind Flange RF

ASME B16.47 Series A/MSS SP-44 Class 600 & Class 900 Blind Flange RTJ

ASME B16.47 Series B/API 605 Class 150 Blind Flange RF

ASME B16.47 Series B/API 605 Class 300 Blind Flange RF

ASME B16.47 Series B/API 605 Class 600 & Class 900 Blind Flange RF
