Threaded Flange

Threaded Flange

threaded-flange

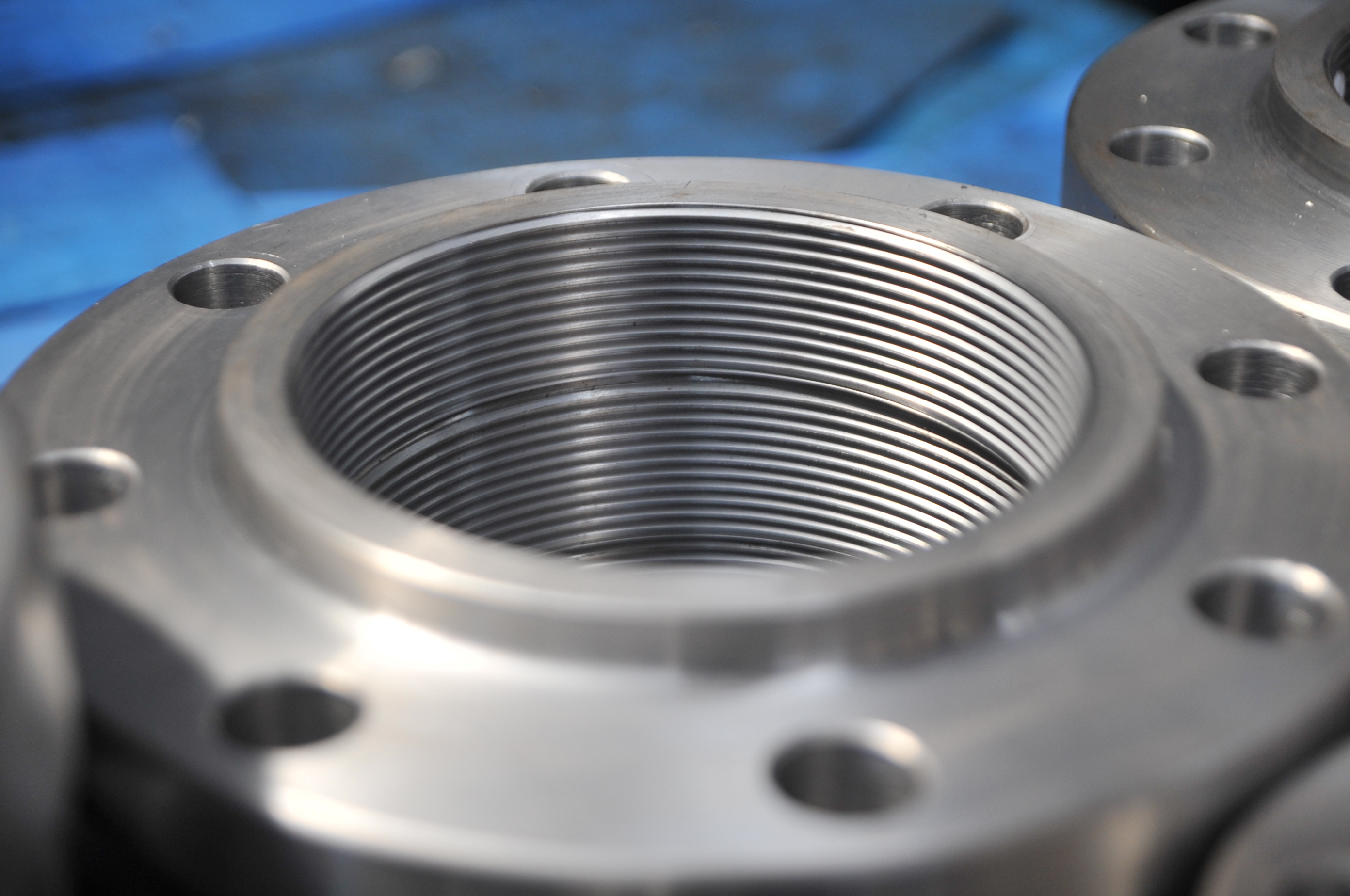

Threaded flange (Screwed flange) is similar to the Slip-On flange, but is popular because it can be attached without welding since it is designed with tapered threads to work with pipes that have external threads. Also low cost, it’s great for small pipes and highly combustible areas where welding is dangerous.



Description of our products:

  • Size: 1/2” to 3”
  • Pressure Rating: Class 150, Class 300, Class 600
  • Connection Face: RF
  • Material:
    • Carbon steel: ASMT A105/N, ASTM A350 LF2 CL1, ASTM A694 F52/F60/F65/F70
    • Stainless steel: ASTM A182 F304/F304L/F310/F316/F316L/F317/F321
    • Alloy steel: ASTM A182 F11/F12/F22
  • Packing: plywood case or plywood pallet
  • Coating: Oil, black paint, yellow paint, hot dip galvanized, electrolytic zinc and epoxy resin coatings



Standards, Dimensions & Weight:

ASME/ANSI B16.5 Class 150 TH RF

ASME/ANSI B16.5 Class 300 TH RF

ASME/ANSI B16.5 Class 600 TH RF

ASME/ANSI B16.5 Class 900 TH RF
