F Nozzle Flange

Full Body Type F Necks – F Nozzle Flanges

F Nozzle Flange

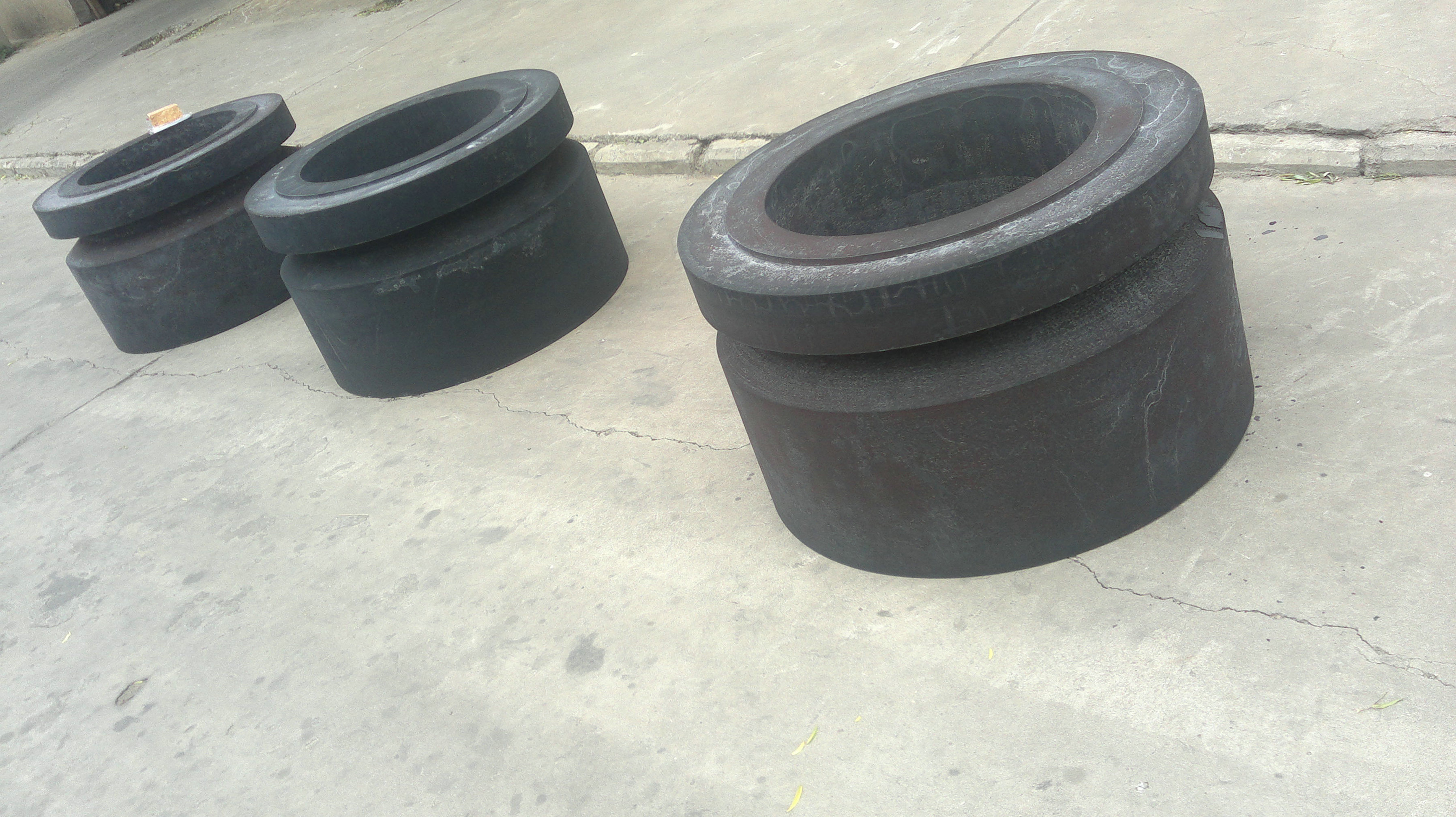

The Full Body Type F Necks – F Nozzle Flanges connection provides the most reinforcement of all standard connections produced by us. The barrel outside diameter equals the outside diameter of the bolting flange. Within the flange hub area, the outside diameter of the barrel provides an automatic nut stop. A nut relief in the barrel, special bores and contoured bottoms are available upon request.

Description of our products:

  • NPS: 1/2” to 24”
  • Pressure Rating: Class 150, Class 300, Class 600, Class 900, Class 1,500, Class 2,500
  • Connection Face: RF / RTJ
  • Material:
    1. Carbon steel: ASMT A105/N, ASTM A350 LF2 CL1, ASTM A694 F52/F60/F65/F70
    2. Stainless steel: ASTM A182 F304/F304L/F310/F316/F316L/F317/F321
    3. Alloy steel: ASTM A182 F11/F12/F22
  • Packing: plywood case or plywood pallet
  • Coating: Oil, black paint, yellow paint, hot dip galvanized, electrolytic zinc and epoxy resin coatings



Standards, Dimensions & Weight:

Class 150 Full Body Type F Necks – F Nozzle Flanges RF
Class 300 Full Body Type F Necks – F Nozzle Flanges RF
Class 600 Full Body Type F Necks – F Nozzle Flanges RF
Class 900 Full Body Type F Necks – F Nozzle Flanges RF
Class 1500 Full Body Type F Necks – F Nozzle Flanges RF
Class 2500 Full Body Type F Necks – F Nozzle Flanges RF
Class 600 Full Body Type F Necks – F Nozzle Flanges RTJ
Class 900 Full Body Type F Necks – F Nozzle Flanges RTJ
Class 1500 Full Body Type F Necks – F Nozzle Flanges RTJ
Class 2500 Full Body Type F Necks – F Nozzle Flanges RTJ
