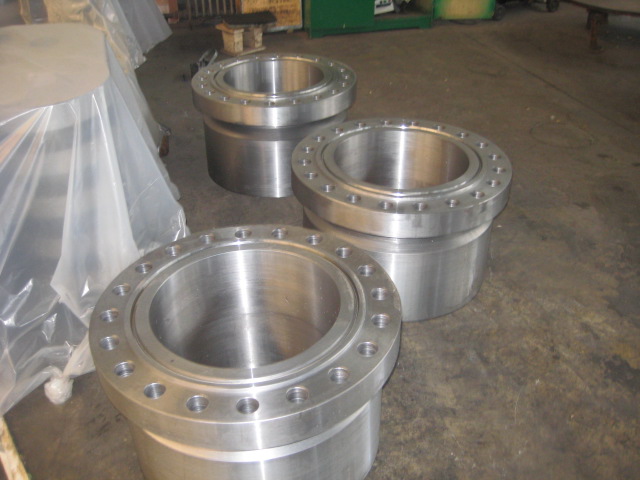

V Nozzle Flange

Variable Body Type V1, V2, V3 Necks – V Nozzle

V Nozzle Flange
The Variable Body Type V1, V2, V3 Necks – V Nozzle connection adds additional reinforcement beyond that of the Transitional V1, V2 & V3 connection options. The “V” has a barrel wall thickness equal to the outside diameter of the mating flange. These items are made to order and can be provided with lengths of any size to provide the offset needed. These connections are always supplied with a “Nut Stop” unless “Nut Relief” is requested. The inside diameter of these connections for 12” and below are provided with a S80 pipe size bores, 14” and large HB Connections are offered with a bore equal to the nominal pipe size. Special bores, contoured bottoms and other custom variations of all kinds are available upon request.



Description of our products:

  • NPS: 1/2” to 24”
  • Pressure Rating: Class 150, Class 300, Class 600, Class 900, Class 1,500, Class 2,500
  • Connection Face: RF / RTJ
  • Material:
    • Carbon steel: ASMT A105/N, ASTM A350 LF2 CL1, ASTM A694 F52/F60/F65/F70
    • Stainless steel: ASTM A182 F304/F304L/F310/F316/F316L/F317/F321
    • Alloy steel: ASTM A182 F11/F12/F22
  • Packing: plywood case or plywood pallet
  • Coating: Oil, black paint, yellow paint, hot dip galvanized, electrolytic zinc and epoxy resin coatings



Standards, Dimensions & Weight:

ASME/ANSI B16.5 Class 150 Variable Body Type V1, V2, V3 Necks – V Nozzle RF

ASME/ANSI B16.5 Class 300 Variable Body Type V1, V2, V3 Necks – V Nozzle RF

ASME/ANSI B16.5 Class 600 Variable Body Type V1, V2, V3 Necks – V Nozzle RF

ASME/ANSI B16.5 Class 900 Variable Body Type V1, V2, V3 Necks – V Nozzle RF

ASME/ANSI B16.5 Class 1500 Variable Body Type V1, V2, V3 Necks – V Nozzle RF

ASME/ANSI B16.5 Class 2500 Variable Body Type V1, V2, V3 Necks – V Nozzle RF

ASME/ANSI B16.5 Class 600 Variable Body Type V1, V2, V3 Necks – V Nozzle RTJ

ASME/ANSI B16.5 Class 900 Variable Body Type V1, V2, V3 Necks – V Nozzle RTJ

ASME/ANSI B16.5 Class 1500 Variable Body Type V1, V2, V3 Necks – V Nozzle RTJ

ASME/ANSI B16.5 Class 2500 Variable Body Type V1, V2, V3 Necks – V Nozzle RTJ
