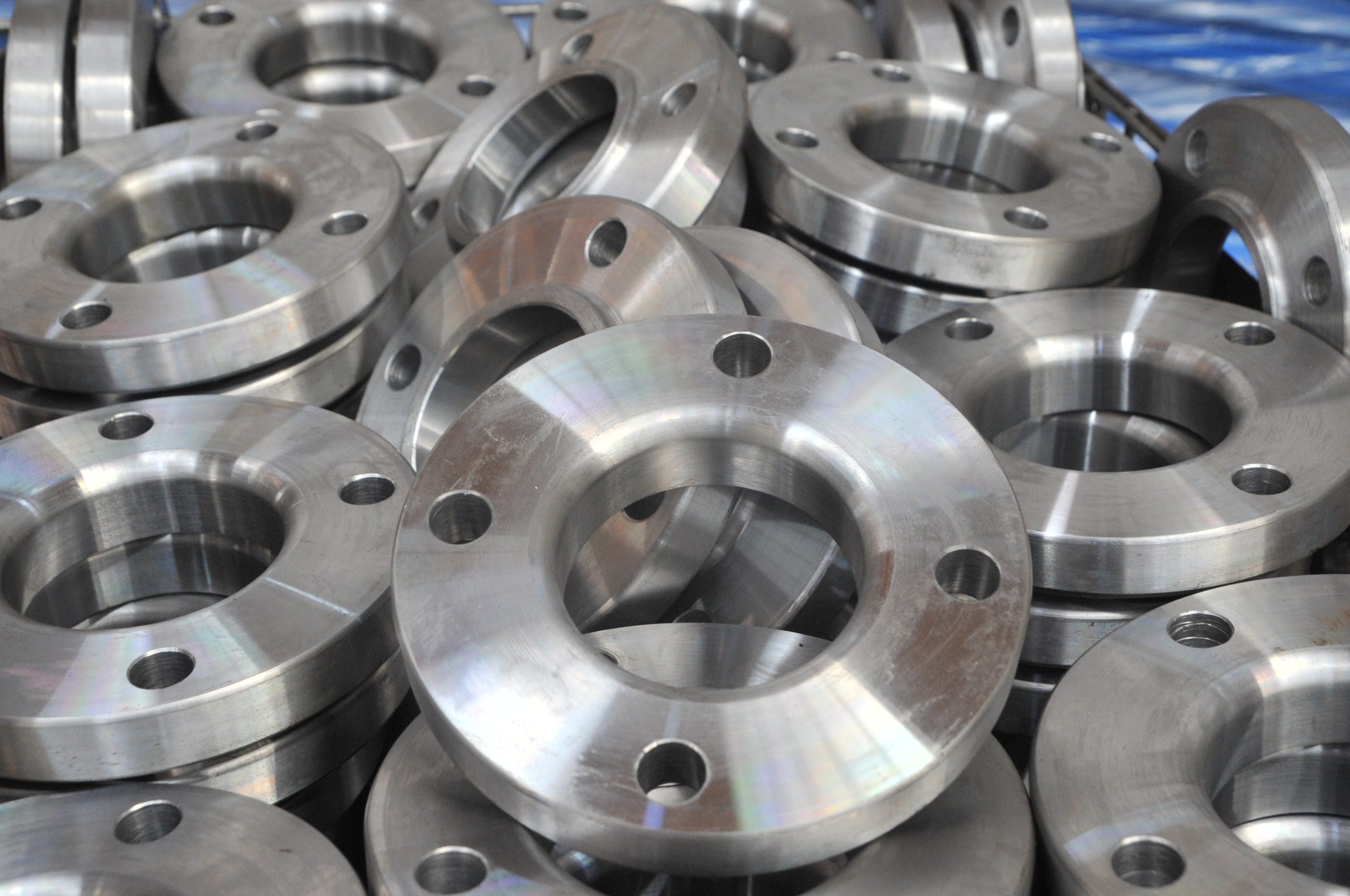

Used in conjunction with a universal stub end fittings this flange is often used to avoid issues that could arise with the alignment of bolt holes. Stub end fittings are welded to the pipe, and rotate around the stub end. They are commonly used in applications where the juncture does not come in contact with the fluid or gas marking then reusable, and they are also beneficial in applications keeping down expenses when exotic metals are used.



Description of our products:

  • NPS: 1/2” to 24”
  • Pressure Rating: Class 150, Class 300, Class 600, Class 900, Class 1,500, Class 2,500
  • Connection Face: FF
  • Material:
    • Carbon steel: ASMT A105/N, ASTM A350 LF2 CL1, ASTM A694 F52/F60/F65/F70
    • Stainless steel: ASTM A182 F304/F304L/F310/F316/F316L/F317/F321
    • Alloy steel: ASTM A182 F11/F12/F22
  • Packing: plywood case or plywood pallet
  • Coating: Oil, black paint, yellow paint, hot dip galvanized, electrolytic zinc and epoxy resin coatings



Standards, Dimensions & Weight:

ASME/ANSI B16.5 Class 150 Lap Joint Flange RF

ASME/ANSI B16.5 Class 300 Lap Joint Flange RF

ASME/ANSI B16.5 Class 600 Lap Joint Flange RF

ASME/ANSI B16.5 Class 900 Lap Joint Flange RF

ASME/ANSI B16.5 Class 1500 Lap Joint Flange RF

ASME/ANSI B16.5 Class 2500 Lap Joint Flange RF
